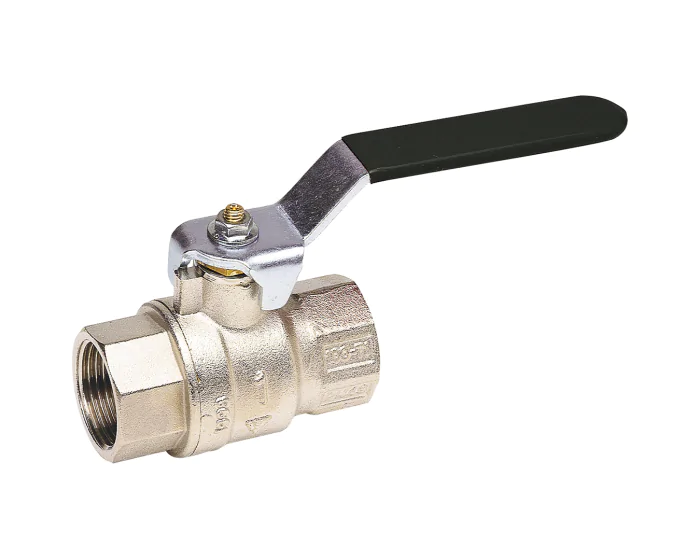

The full bore brass ball valve 521 NPT for shut-off of water, heating, sprinkling, irrigation, air conditioning and compressed air systems. Long threads and NPT threads.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Brand | AIRAGA |
| Thread standard | ANSI B1.20.1 |
| Stem sealing material | PTFE Gland packing + EPDM O-ring |
| Type of coating | Nickel-plated |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Brass CW614N |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 46.5 |
| Fluid | Cold water |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 60 |
| Connections | NPT FF |
| Seats | PTFE |
| Ball material | Chrome-plated brass CW617N |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Handle material | Carbon steel |
| Handle type | Black lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Brass CW617N Full 1/4'' Black lever | 521002 | S1010055 |
€5.96
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 3/8'' Black lever | 521003 | S1010056 |
€5.96
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 1/2'' Black lever | 521004 | S1010057 |
€9.09
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 3/4'' Black lever | 521005 | S1010058 |
€12.86
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 1'' Black lever | 521006 | S1010059 |
€19.93
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 1''1/2 Black lever | 521008 | S1010060 |
€46.43
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 2'' Black lever | 521009 | S1010061 |
€73.19
(excl. btw)
|
add to cart |

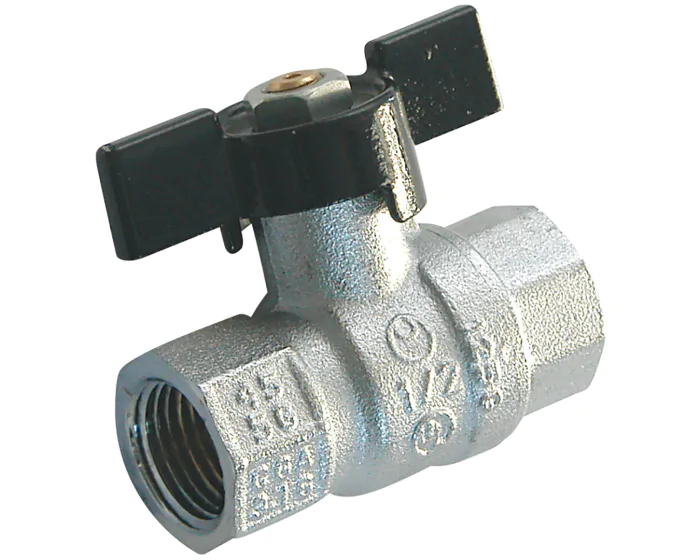

| NPT FF Brass CW617N Full 1/4'' Black butterfly handle | 521012 | S1010062 |
€5.96
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 3/8'' Black butterfly handle | 521013 | S1010063 |
€5.96
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 1/2'' Black butterfly handle | 521014 | S1010064 |
€9.09
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 3/4'' Black butterfly handle | 521015 | S1010065 |
€12.86
(excl. btw)
|
add to cart |
| NPT FF Brass CW617N Full 1'' Black butterfly handle | 521016 | S1010066 |
€19.93
(excl. btw)
|
add to cart |
